Motor Solutions

3D Simulation Imaging

● Compact & High Power Density

By seamlessly integrating the control board (PCB) with the motor body, the complex external wiring of traditional motors is eliminated, increasing the ease of installation.

● Thermal Management

The high-heat-generating coils and power components are closely attached to the metal casing and end caps, forming an efficient heat conduction path, which is beneficial for long-term high-load operation.

● Design for Assembly, DFA

The axial stacking design, with clearly defined locating pins and standardized interfaces, greatly facilitates rapid assembly and testing on automated production lines, effectively reducing the defect rate.

Advanced Production Facilities

Cannex has established a vertically integrated end-to-end service encompassing R&D, production, and sales. By introducing precision manufacturing equipment and automated processes, we ensure that every motor under our own brand possesses superior performance and consistent quality.

Automatic Winding Machine System

Equipped with digital monitoring and high-precision wiring technology, it ensures the full fill factor of the stator coil slots, which is the core of motor power.

Automatic Paper Slotting And Precision Injection Machine

It enables automated insertion and precise positioning assembly of insulating paper, significantly improving the motor's dielectric withstand capability, reliability, and safety.

Precision Industrial-Grade Hydraulic press

High-strength pressing of structural components ensures concentricity between the shaft and bearings, improving operational quietness and vibration resistance.

High-energy Precision Magnetization System

Imbuing the rotor with stable and strong permanent magnetism is a key process for improving the torque output of a DC brushless motor.

Automated E-button Assembly Machine

Precisely fixed axial structure prevents component displacement and ensures the structural stability and long-term durability of the motor under various operating environments.

Quality Assurance & Testing

Cannex adheres to the highest standards of quality and has established a fully digital precision testing system. From safety verification of coil windings to simulation testing of the dynamic performance of finished products, every motor must pass through strict quality control checkpoints to ensure that it can demonstrate excellent stability under various extreme operating conditions.

Coil Integrated Automatic Testing

100% inspection of insulation withstand voltage, resistance and inductance imbalance. Ensuring the absolute safety of the electrical structure under varying voltage environments.

Gauss Magnetic Performance Testing Platform

Precise scanning of rotor magnetic field strength and symmetry optimizes power output from the source, reducing operating noise and energy loss.

Finished Product Dynamic Performance Comprehensive Testing Machine

Digitally acquire load/no-load characteristic curves (T-N curve), torque, speed and overall performance data. Verify that the independently developed motor can perfectly meet the high-efficiency requirements of the FCU system.

Finished Product Burn-In Aging Test Chamber

By simulating real-world operating environments, the finished products undergo high-intensity stress screening to ensure that every motor delivered to customers has an excellent service life and reliability.

International Certification And Reliability Verification

Quality Management System: ISO 9001:2015 International Certification

Certificate Number: 5758
Certification Standard: ISO 9001:2015
Certification Scope: Professional SMT and DIP processing services for electronic products
Core Value: Through internationally standardized process management, we ensure consistent quality in every batch of production, fulfilling our promise to our customers of "stable quality and long-term trust".

Environmental Reliability Verification: SGS IP55 Protection Rating Test

Report Number: YC70013/2025

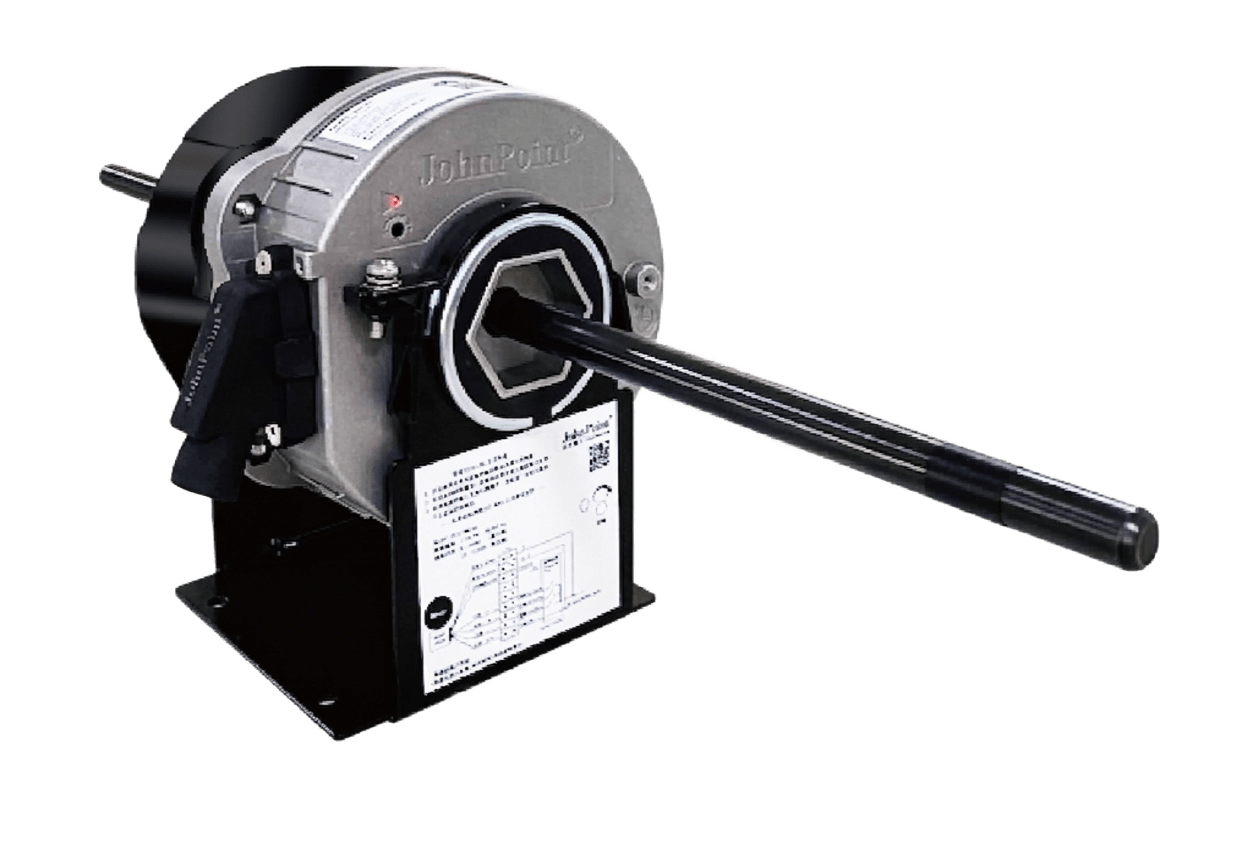

Test Product: F Series BLDC for FCU and BLOWER
Test Item: Enclosure protection rating (IP Code)
Technical Strength: The motor has proven to have excellent dustproof and waterproof capabilities, ensuring safe operation in humid or dusty conditions and adapting to various harsh application environments.
