JohnPoint® Single/Dual Shaft DC Brushless Motor

Protect the Earth and promote the use of renewable energy.
This is not just a motor; it is a complete operating control system and a masterpiece of innovative design concepts.It can directly replace the original AC motor and is the best choice for energy-saving upgrades. When you need innovative solutions, we can provide you with the most complete answer to your motor control problems.





1. The three-speed input signal LED light indicates visibility.
2. The static pressure can be adjusted in six levels of fine-tuning settings.
3. The outlet metal bellows provide the most durable protection.
4. The FCU fan is replaced with a DC EC motor, which immediately saves more than 40% of energy and saves money visibly!
5. It is the best choice for energy-saving replacement by directly replacing the original AC motor.

┃ Four Key Features ┃

1. The simplest replacement for old and new : can directly replace compatible AC motors, suitable for maintenance and repair.
2. Old temperature control system can still be used : the original control system does not need to be changed, and the original AC thermostat can still be used.
3. Three speeds meet high and low static pressure : 3-speed air volume (six-speed adjustable, to meet high and low pressure).
4. Made in Taiwan (MIT) : the pride of Taiwan! EC motors are low-temperature and energy-saving, saving more than 40% of electricity.

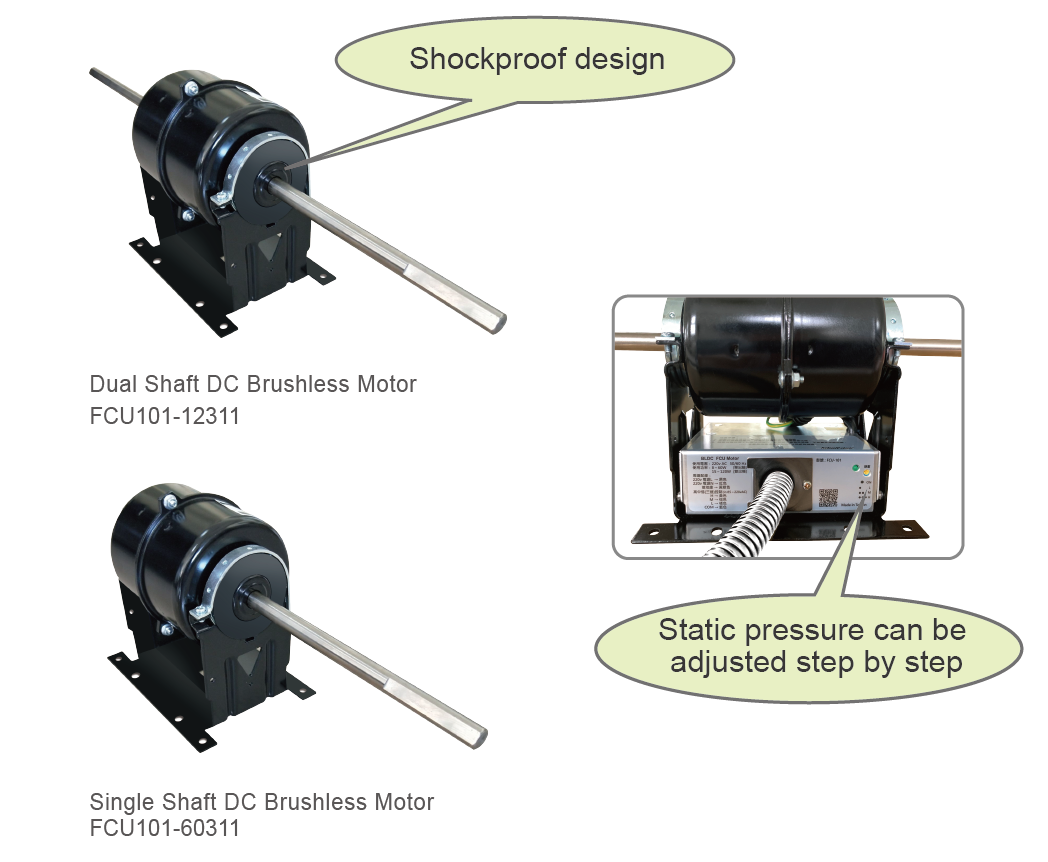

(FCU) dedicated DC brushless motor



FCU101-12311
Dual Shaft DC Brushless Motor
● Application : This product contains a driver and a DC brushless motor and is suitable for DC motor applications.
● Input specification : Dual shaft - BAA02043 → 120W/220V
● Motor shaft height : 105mm
● It is a sensorless element type and has over-current protection device, B-class insulation.
● The driving technology is sine wave control technology, and the motor driving frequency is 20KHZ.



FCU101-60311
Single Shaft DC Brushless Motor
● Application : This product contains a driver and a DC brushless motor and is suitable for DC motor applications.
● Input specification : Single shaft - BAA02045 → 60W/220V
● Motor shaft height : 105mm
● It is a sensorless element type and has over-current protection device, B-class insulation.
● The driving technology is sine wave control technology, and the motor driving frequency is 20KHZ.

The Johnpoint FCU DC brushless motor air conditioning fan has the following advantages:


➊ Lightweight : small in size and light in weight.
➋ High efficiency : eliminates carbon brush wear and uses advanced permanent magnets (NdFeB).
➌ Low vibration : adopts a drive-free substrate design, achieving V3 low vibration quality.
➍ Energy-saving : a wide range of high-efficiency usage intervals, reducing equipment power consumption.
➎ Long lifespan: average heat dissipation is fast, temperature rise is low, and comes with a 5-year warranty.
➏ Low cost: the motor drive, power supply, temperature control, and communication are integrated.
➐ Low noise: uses superior control methods compared to traditional systems.
➑ Safety: has overheating protection devices and an internal high-voltage power cut-off switch.
➒ Easy maintenance: lower maintenance and repair costs, more time-saving and convenient.
